Overview #
Workzone provides detailed pull request reviewer and approval configuration rules for each Branch configuration to control which reviewers and groups are added depending on branch and file/module patterns as well as approval quotas to control how many approvals are required before a pull request can be merged.
To add a rule click the (1) ‘Add review group’ button.
(1) Reviewer users and/or groups: Add users and groups that will be automatically added to a pull request when it is created.
(2) Only after successful build (optional): Some workflows require a successful build for the pull request source branch before the review starts. If this is checked Workzone will not add reviewers to a pull request until a successful build is detected.
(3) Digital Signature: digitally sign pull request approvals with a personal signature token.
(4)Quota: The approval quota required before the pull request can be merged (subject to branch merge conditions). Either a per-cent or absolute count quota must be specified.
(5) Disable quota: If Workzone is not required to control the merge process and should only add reviewers the approval quota can be disabled. Workzone will not count approvals.
(6) File pattern: Specify a module or file path pattern for the reviewer/approval rule. The rule is only applied if the pull request change set has changes that match the pattern.
(7) Add another reviewer rule
Examples #
A fictional project with a mono-repository has 3 main code areas (and groups): UI (ui-devs), server (backend-devs) and test (qa-team). We also have a project manager as well as a release manager. Workzone can easily support the project team with their pull request workflow.

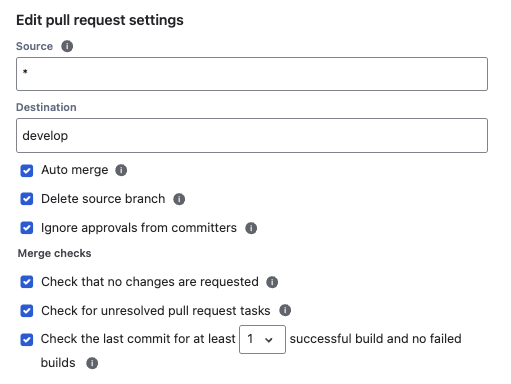

Example Development Team Configuration #
(1) Source branch: ‘*’ – covers an branch for example ‘bugfix/xxx’ or ‘feature/yyy’
(2) Destination branch: ‘develop’ – the shared branch for the development team
(3) Auto-merge: Recommended setting is ‘checked‘ – workzone will merge feature and bugfix branches as soon as merge-conditions are met.
(4) Delete source branch: Recommended setting is ‘checked‘. Depends on the team’s preference.
(5) No requested changes: Recommended setting is ‘checked‘.
(6) No unresolved tasks: Recommended setting is ‘checked‘
(7) Successful builds: How many successful and no failed builds are required before the pull request can be merged. Recommended setting: ‘1’
Example reviewer rule #1: #
Reviewers: ‘ui-devs’
Quota: 2, at least 2 approvals from ui-devs group, if changes in src/ui/**
File pattern: src/ui/**, only apply this rule if changes in src/ui/** are present in the changeset
Example reviewer rule #2: #
Reviewers: ‘backend-devs’
Quota: 2, at least 2 approvals from backend-devs group, if changes in src/main/**
File pattern: src/main/**, only apply this rule if changes in src/main/** are present in the changeset
Example Reviewer rule #3: #
Reviewers: ‘qa-team’
Quota: 1, at least 1 approvals from qa-team group, if changes in src/test/**
File pattern: src/test/**, only apply this rule if changes in src/test/** are present in the changeset

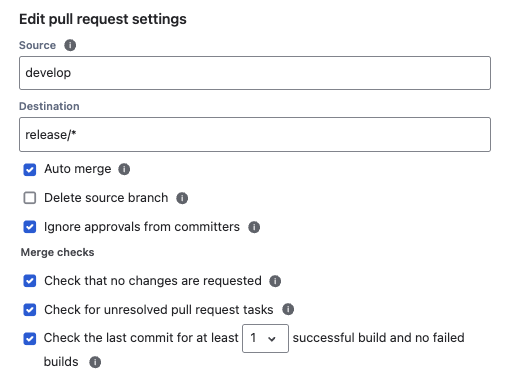

Example Release configuration #
(1) Source branch: ‘develop’
(2) Destination branch: ‘release/*’ – the versioned release branch
(3) Auto-merge: Recommended setting is ‘checked‘ – workzone will merge as soon as merge-conditions are met.
(4) Delete source branch: Recommended setting is ‘unchecked‘. The ‘develop’ branch is long-lived
(5) No requested changes: Recommended setting is ‘checked‘.
(6) No unresolved tasks: Recommended setting is ‘checked‘
(7) Successful builds: How many successful and no failed builds are required before the pull request can be merged. Recommended setting: ‘1’
Example Reviewer Rule #1:
Reviewers: ‘qa-team’
Quota: 1, at least 1 approval from QA to acknowledge all manual tests are passing
File pattern: leave blank
#
Example Reviewer Rule #2: #
Reviewers: ‘Release Manager’, notify the release manager of the upcoming release merge
Quota: 1, mandatory approval from the release manager
File pattern: leave blank
Example Reviewer rule #3: #
Reviewers: ‘Project Manager’, notify the project manager of the upcoming release merge
Quota: disabled, the project manager only needs a notification but no need to approve
File pattern: leave blank
